Abrasive Synthetic Diamond Powder Grits

Basic Info

Production Capacity

1000 Kg/Month

Product Description

Abrasive synthetic diamond powder grits
Synthetic diamond is the hardest industrial material. It is also known as laboratory-created diamond, laboratory-grown diamond, cultured diamond or cultivited diamond) is diamond produced in an artificial process, as opposed to natural diamonds, which are created by geological processes.

The properties of synthetic diamond depend on the details of the manufacturing processes,however, so synthetic diamonds (whether formed by HPHT or CVD) have properties such as hardness, thermal conductivity and electron mobility that are superior to those of most naturally-formed diamonds.

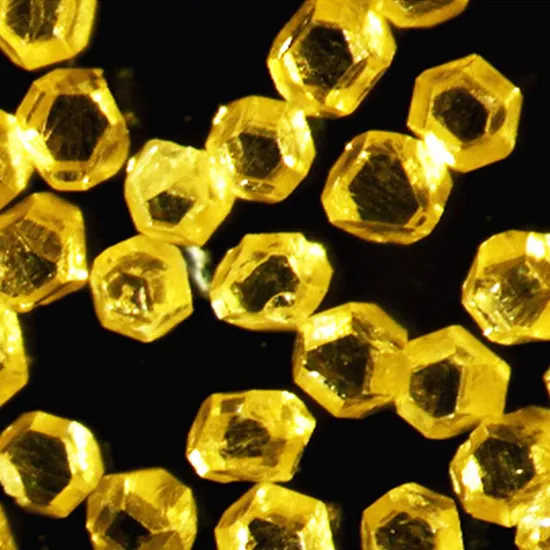

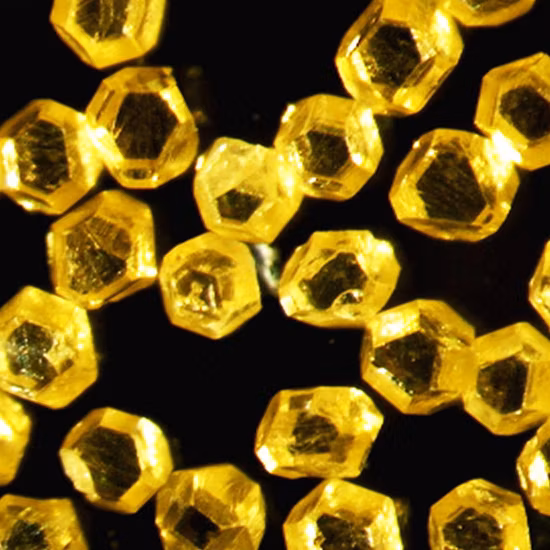

Synthetic Diamond Grit
1. Complete crystal forms
2.High purity
3.Great thermal stability
4.TI&TTI value reaching the international level

(1 )Item: synthetic diamond grit
Color: yellow
Grit Size:
16/18(D1180),18/20 (D1001),20/25 (D851),25/30 (D711),30/35 (D601),35/40 (D501)
40/45 (D425), 45/50 (D356), 50/60 (D301), 60/70 (D251),70/80 (D213), 80/100 (D181)
100/120 (D151),120/140 (D126),140/170 (D107),170/200 (D91),200/230 (D76)
230/270 (D64),270/325 (D54), 325/400 (D46)

Application:
Synthetic diamond is the hardest industrial material. It is characterized as high strength, excellent wearability and thermal stability . Synthetic diamond grit is suitable for making diamond saw blades, circular saws, drill bits, wire saws and milling tools .
Also used for high-end grinding tool, hard alloy, stone, ceramic and other hard material grinding.

Picture:

(2)# ‚ RVD Diamond Crushing Material:
1. Irregular shape

2. Good self-sharpening

Item: rvd diamond crushing material

Size:

100/120 230/270

120/140 270/320

140/170 325/400

170/200 400/500

200/230 500/600

Applications:
1.Suitable for resin bond diamond tools making and rough grinding. For making Diamond Saw, Diamond Blade, Grinding wheels, Drills, Electroplate tools, etc.

2. Widely used in machine, metallurgy, oil, geology, building materials, electron,

and meter, national defense industry and frontiers of technology.

Picture:

(3) # ƒ Synthetic Diamond Micron Powder:

For polishing: 0-0.5,0-1,0.5-1,0.5-1.5,0-2, 1-2,1-3,2-4,2.5-5,3-6
For Lapping ; 4-8, 5-10,6-12,8-16,10-20
For Grinding : 12-22, 20-30,22-36, 36-54



Our company's other available size of industrial synthetic diamond:

4)# Big Size Synthetic Diamond
(Application: cutting tools, drilling tools, grinding tools, dressing tools, etc.)

18/20 16/18 14/16 12/14 10/12 1.0mm 1.2mm 1.4mm 1.6mm 1.8mm 2.0mm 2.2mm 2.4mm 2.6mm 2.8mm 3.0mm

5)# Synthetic Diamond Plates
(Application : cutting , dressing, optics tools, wearing parts, etc.)
2.5mm*2.5mm*1.1mm 3.0mm*3.0mm*1.1mm 3.5mm*3.5mm*1.1mm
4.0mm*4.0mm*1.1mm 4.5mm*4.5mm*1.1mm 5.0mm*5.0mm*1.1mm

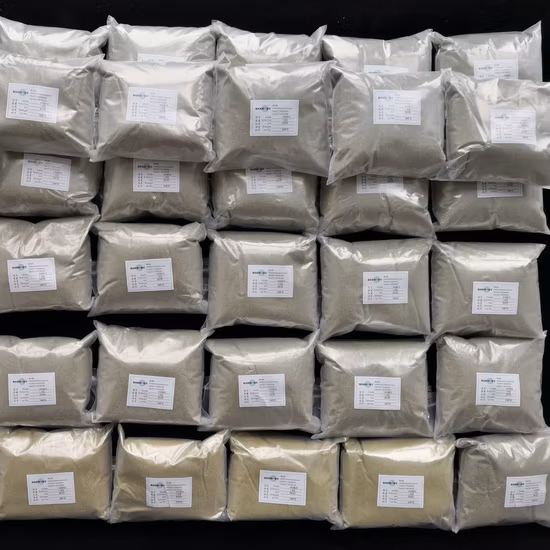

Packaging & Shipping
